NetPipe Network Benchmarks

Introduction

A few years ago I had performed tests using nttcp and NetPipe to get a baseline on the network performance of a few hosts networked through Cisco Catalyst switches. The goal was to establish a baseline in order to test the performance of jumbo frames.


Here is what I was writing in Sept. 2007:

You’ll find below some network benchmarks done with ttcp and NetPipe. For more information on NetPipe have a look at the design site http://www.scl.ameslab.gov/netpipe . Even though NetPipe is typically used to benchmark message-passing APIs in clustered environment it can give very useful information for raw TCP performance. My goal using ttcp and NetPipe is just to establish a baseline in order to compare and fine tune systems parameters when the new switch is installed and jumbo frames are enabled.

The benchmarks involved 2 systems (Debian/Etch 64bit, 8 cores Xeons, 12GB RAM) with their dual-onboard Intel 82546GB Gigabit Ethernet controllers directly connected in a point-to-point configuration. See setup file for details on the hardware and how it was configured. Note: I’ve added benchmarks between one of the Debian/Etch system above and a Origin3000 (SGI) 28CPUs, 28MB RAM running Irix-6.5.19f. The SGI server (yorick) is connected in a Cisco 3500XL switch with a FC Gigabit Ethernet as are the Debian/Etch boxes (they use copper however).

I baselined the throughput between the 2 p-to-p connected NICs using nttcp and different buffer lengths. The raw TCP performance reported by ttcp was always near saturation for a 1Gbps connection no matter what I used for buffer lengths, from 4KB to 512KB. See ttcp.txt for the gory details. In the case of the ‘switched’ NICs, no matter the buffer length value used, nttcp always reported transfer rates of the order of 500Mbps, a disappointing ~50% value of the maximum throughput achievable.

Using NetPipe with the onboards NICs directly connected or switched provide interesting numbers. Not repeating the discussion and analysis that you can find on the NetPipe site (see above) I’ve plotted the raw TCP throughput vs the data block size transfered through the sockets (important note: all units are expressed in bits) and what’s called the ‘signature graph’ along with the ‘saturation graph’.


A few points about NetPipe. The standard way of analysing NetPipe output is to plot 3 graphs:

  • The standard throuhput graph, ie, the throughput versus the message block size, usually plotted using a log scale for the block size.

Here is an example:

The maximum throughput is easily measured from this graph. However, it is difficult to analyse network latencies, an very important network metric.

  • The saturation graph, the block size values versus the transfer/elapsed time.

Plotted using a log-log scale, this graph allows us to determine the saturation point, the block size threshold value after which an increase of the block size just results in a close-to-linear increase in transfer time. The region from the saturation point until the end of the graph is the saturation interval, the region where where throughput cannot be improved by increasing the block size.

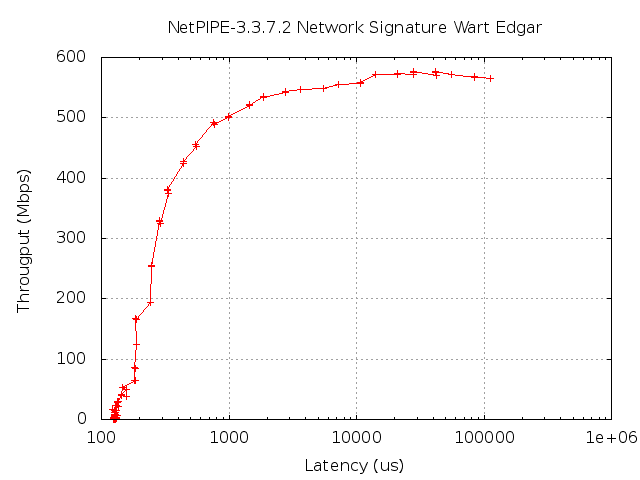

  • The signature graph, the transfer speed versus the elapsed time.

This graph represents a network accelaration graph. When plotted using a logarithmic scale for the elapsed time one can easily see that the network latency coincides with the time value where the graph takes off.


Hardware

Use 2 hosts (edgar and wart) networked on the actual 1 GbE switched network (Cisco Catalyst 5300XL).

Physical device description:

  • — edgar —

This box has 2 onboard Inte GbE interfaces and one dual 10 GbE Intel card (disabled at the moment).

edgar:~# lshw -short -class network
H/W path              Device      Class      Description
========================================================
/0/100/1/0            eth2        network    82598EB 10-Gigabit AF Dual Port Net
/0/100/1/0.1          eth3        network    82598EB 10-Gigabit AF Dual Port Net
/0/100/1c.4/0         eth1        network    82574L Gigabit Network Connection
/0/100/1c.5/0         eth0        network    82574L Gigabit Network Connection

edgar:~# ifconfig eth0
eth0      Link encap:Ethernet  HWaddr 00:25:90:39:e6:73
          inet addr:132.206.178.150  Bcast:132.206.178.255  Mask:255.255.255.0
          inet6 addr: fe80::225:90ff:fe39:e673/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:15873265826 errors:0 dropped:179714 overruns:0 frame:0
          TX packets:8092049789 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:23963781369736 (21.7 TiB)  TX bytes:589736966818 (549.2 GiB)
          Interrupt:17 Memory:fabe0000-fac00000

edgar:~# netstat -ina
Kernel Interface table
Iface   MTU Met   RX-OK RX-ERR RX-DRP RX-OVR    TX-OK TX-ERR TX-DRP TX-OVR Flg
eth0       1500 0  15873267284      0 179726 0      8092050170      0      0      0 BMRU
eth1       1500 0  25033235      1 179750 0          4492      0      0      0 BMRU
eth1:0     1500 0       - no statistics available -                        BMRU
eth2       1500 0         0      0      0 0             0      0      0      0 BM
eth3       1500 0         0      0      0 0             0      0      0      0 BM
lo        16436 0  2041108511      0      0 0      2041108511      0      0      0 LRU
  • — wart —
wart:~# lshw -short -class network
H/W path                Device       Class      Description
===========================================================
/0/100/1/0              eth2         network    Intel Corporation
/0/100/1/0.1            eth1         network    Intel Corporation
/0/100/9/0/2            eth0         network    AceNIC Gigabit Ethernet
/1                      vboxnet0     network    Ethernet interface

wart:~# ifconfig eth0
eth0      Link encap:Ethernet  HWaddr 08:00:69:13:6e:ec
          inet addr:132.206.178.8  Bcast:132.206.178.255  Mask:255.255.255.0
          inet6 addr: fe80::a00:69ff:fe13:6eec/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:198706055033 errors:0 dropped:0 overruns:0 frame:0
          TX packets:101432453119 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:298319406723513 (271.3 TiB)  TX bytes:10555129095400 (9.5 TiB)
          Interrupt:28 Base address:0xc000

wart:~# netstat -ina
Kernel Interface table
Iface   MTU Met   RX-OK RX-ERR RX-DRP RX-OVR    TX-OK TX-ERR TX-DRP TX-OVR Flg
eth0       1500 0  198706056180      0      0 0      101432453387      0      0      0 BMRU
eth0:0     1500 0       - no statistics available -                        BMRU
eth1       1500 0      8729      0      0 0           227      0      0      0 BMU
eth2       1500 0         0      0      0 0             0      0      0      0 BM
lo        16436 0  24631334609      0      0 0      24631334609      0      0      0 LRU
vboxnet0   1500 0         0      0      0 0             0      0      0      0 BM

The H/W path /1 is a virtual device used by VirtualBox.


Cisco Nexus 5010 10GbE switch

Cisco Nexus 5010 10GbE switch along with 2 hosts with Intel 10GBE AF DA Dual Ports Adapter (8x PCI-E) with Twinax copper cables.


Hardware


node17:~# lshw -short -class network
H/W path              Device      Class      Description
========================================================
/0/100/4/0            eth1        network    82599EB 10-Gigabit SFI/SFP+ Network
/0/100/4/0.1          eth2        network    82599EB 10-Gigabit SFI/SFP+ Network
/0/100/1c/0           eth0        network    82576 Gigabit Network Connection
/0/100/1c/0.1         eth3        network    82576 Gigabit Network Connection
/1                    bond0       network    Ethernet interface

NetPipe Benchmarks


qlen=1000 (as for a typical 1GbE interface configuration)

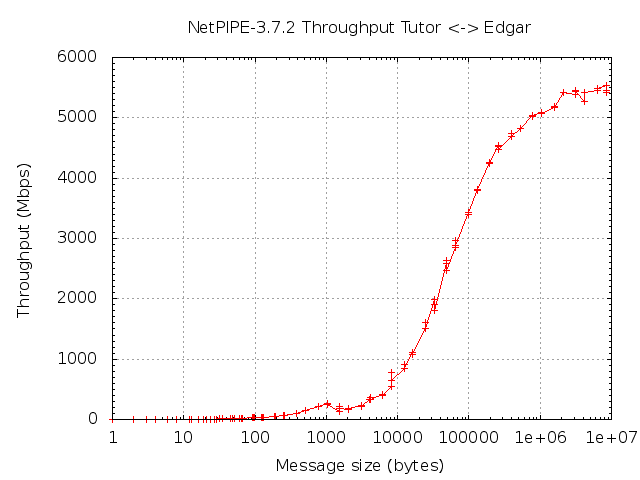

  • Throughput graph

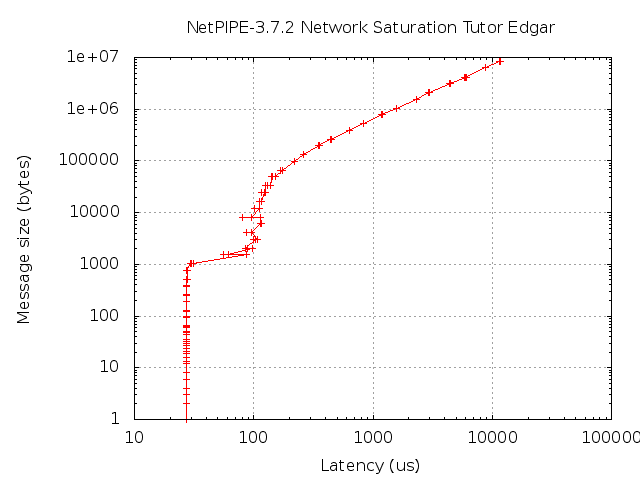

  • Saturation graph

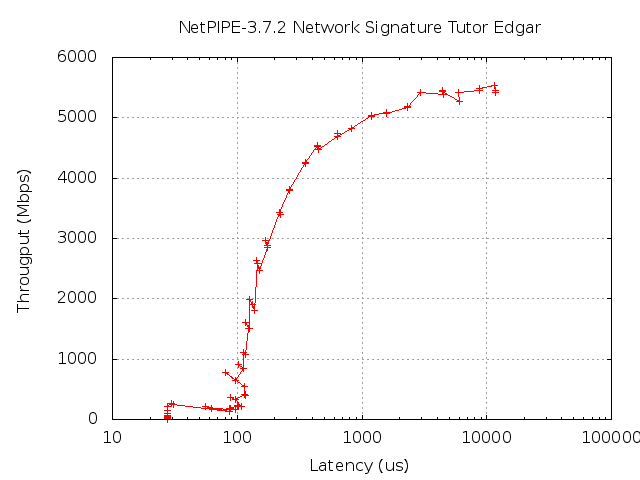

  • Signature graph
NTTCP

nntcp runs, with different buffer length size, 4k, 16k, 64k , 256k, 512k (the -l option). Default is 4k, the 1st run.

edgar:~# nttcp -v -T -t 10.0.0.229
nttcp-l: nttcp, version 1.47
nttcp-l: Pid=24881
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Pid=20663, InetPeer= )
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.229: "10.0.0.229" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=4096, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 16384
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: receive window size = 87380
nttcp-1: buflen=4096, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   5226.5470  20134.6727    2048 159501.56  614461.4
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1  8388608    0.01    0.01   4661.3089   6711.5576    2095 145516.43  209521.0
nttcp-1: exiting


edgar:~# nttcp -D -v -t -T -l 16384 10.0.0.229
nttcp -D -v -t -T -l 16384 10.0.0.229
nttcp-l: nttcp, version 1.47
nttcp-l: Pid=25103
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Pid=20945, InetPeer= )
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.229: "10.0.0.229" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=16384, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: send window size = 16384
nttcp-1: receive window size = 87380
nttcp-1: buflen=16384, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 33554432 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l 33554432    0.05    0.01   5302.5335  26846.2302    2048  40455.12  204820.5
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 33554432 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1 33554432    0.05    0.03   5131.8241   8053.6274    2257  43148.28   67714.7
nttcp-1: exiting

edgar:~# nttcp -D -v -t -T -l 65536 10.0.0.229
nttcp-l: nttcp, version 1.47
nttcp-l: Pid=25307
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Pid=20953, InetPeer= )
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.229: "10.0.0.229" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=65536, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 16384
nttcp-1: receive window size = 87380
nttcp-1: buflen=65536, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 134217728 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l134217728    0.19    0.03   5706.0205  35793.7804    2048  10883.37   68271.2
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 134217728 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1134217728    0.19    0.13   5660.9261   8053.6274    2975  15684.64   22314.1
nttcp-1: exiting

edgar:~# nttcp -D -v -t -T -l 262144 10.0.0.229
nttcp-l: nttcp, version 1.47
nttcp-l: Pid=25465
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Pid=20958, InetPeer= )
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.229: "10.0.0.229" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=262144, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 16384
nttcp-1: receive window size = 87380
nttcp-1: buflen=262144, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 536870912 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l536870912    0.75    0.14   5744.4846  29967.0485    2048   2739.18   14289.4
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 536870912 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1536870912    0.75    0.54   5731.1621   8003.5766    5961   7954.30   11108.2
nttcp-1: exiting

edgar:~# nttcp -D -v -t -T -l 524288 10.0.0.229
nttcp-l: nttcp, version 1.47
nttcp-l: Pid=25655
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Pid=20961, InetPeer= )
nttcp-l: from 10.0.0.229: "10.0.0.229" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.229: "10.0.0.229" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=524288, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 16384
nttcp-1: receive window size = 87380
nttcp-1: buflen=524288, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 1073741824 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l1073741824    1.49    0.29   5747.0942  29966.9440    2048   1370.21    7144.7
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 1073741824 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
11073741824    1.50    1.13   5740.0088   7579.8512   11913   7960.56   10512.2
nttcp-1: exiting

qlen=10000

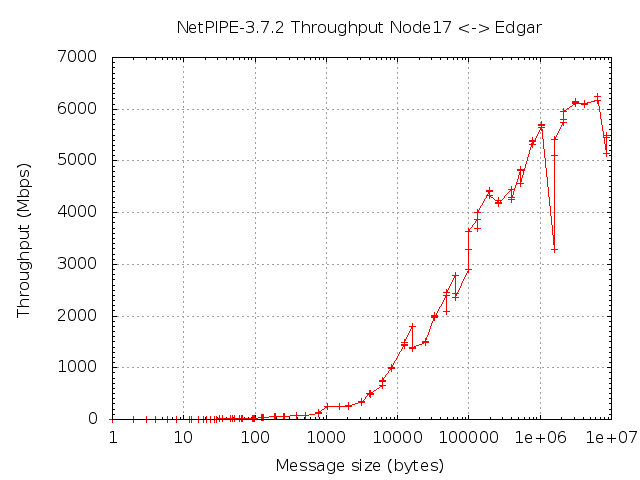

  • Throughput graph:

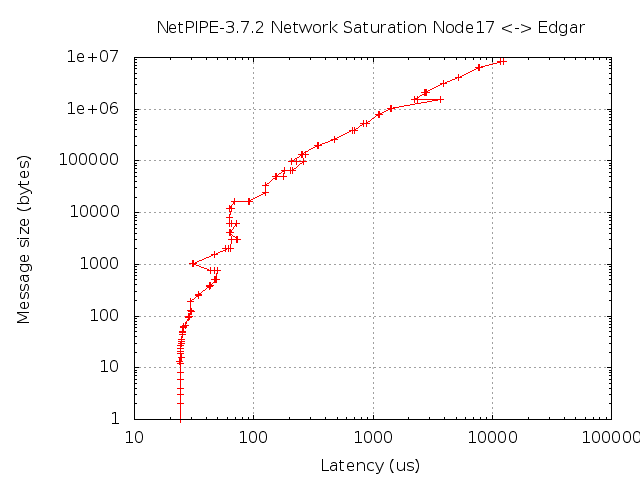

  • Saturation graph:

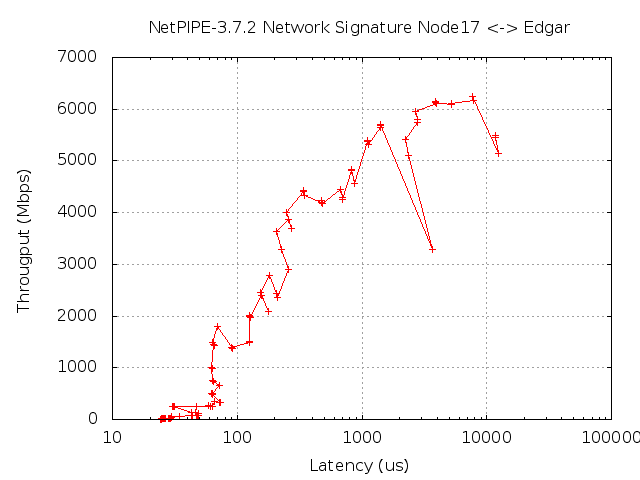

  • Signature graph
NTTCP
edgar:~# for i in 4096 8192 16384 65536 262144 524288; do nttcp -D -v -t -T -x 8388608 -l $i 10.0.0.217; done

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11036
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28483, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=4096, bufcnt=2048, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-1: buflen=4096, bufcnt=2048, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   5753.0102  20134.6727    2048 175567.94  614461.4
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1  8388608    0.01    0.01   5411.5687   6711.5576    2291 184743.17  229122.9
nttcp-1: exiting

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11037
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28485, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=8192, bufcnt=1024, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: buflen=8192, bufcnt=1024, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.04    0.00   1855.2197  20134.6727    1024  28308.41  307230.7
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1  8388608    0.04    0.01   1809.3032   5033.6682    1157  31193.55   86783.7
nttcp-1: exiting

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11038
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28486, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=16384, bufcnt=512, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-1: buflen=16384, bufcnt=512, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   5963.6421  20134.6727     512  45498.98  153615.4
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
nttcp-l: try to get outstanding messages from 1 remote clients
1  8388608    0.01    0.01   5657.4662   6711.5576     759  63985.84   75907.6
nttcp-1: exiting

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11039
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28487, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=65536, bufcnt=128, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-1: buflen=65536, bufcnt=128, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   6294.8001  20134.6727     128  12006.38   38403.8
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
1  8388608    0.01    0.01   5886.7425   6711.5576     504  44210.53   50405.0
nttcp-1: exiting

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11040
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28488, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=262144, bufcnt=32, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-1: buflen=262144, bufcnt=32, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   5932.5375  20134.6727      32   2828.85    9601.0
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
1  8388608    0.01    0.01   5568.7382  10067.3363     525  43564.85   78757.9
nttcp-1: exiting

nttcp-l: nttcp, version 1.47
nttcp-l: Pid=11041
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Pid=28489, InetPeer= )
nttcp-l: from 10.0.0.217: "10.0.0.217" (=nttcp-1: Optionline="nttcp@-r@)
nttcp-l: from 10.0.0.217: "10.0.0.217" (=dataport: 5038)
nttcp-l: send window size = 16384
nttcp-l: receive window size = 87380
nttcp-l: buflen=524288, bufcnt=16, dataport=5038/tcp
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: accept from 10.0.0.150
nttcp-1: send window size = 24040
nttcp-1: receive window size = 87380
nttcp-1: buflen=524288, bufcnt=16, dataport=5038/tcp

nttcp-l: transmitted 8388608 bytes
     Bytes  Real s   CPU s Real-MBit/s  CPU-MBit/s   Calls  Real-C/s   CPU-C/s
l  8388608    0.01    0.00   6303.6694  20134.6727      16   1502.91    4800.5
nttcp-l: try to get outstanding messages from 1 remote clients
nttcp-1: received 8388608 bytes
1  8388608    0.01    0.01   5973.7283   6711.5576     151  13441.34   15101.5
nttcp-1: exiting

Jumbo frames enabled and qlen=10000 (10x of a typical 1GbE interface configuration)

Jumbo frames are enabled on the Nexus-5010 10GbE switch and the SFP+ interface on the 2 hosts have been also modified to allow jumbo frames along with a txqueuelen of 10000.
