display Windows

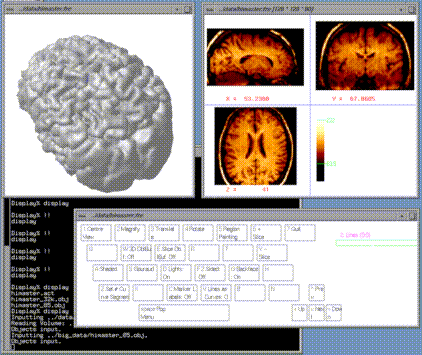

Figure 1 shows the four windows used by display (three of which are created when the program is run):

3D window:

contains the 3D objects, such as surfaces, lines, and markers,

slice window:

shows 3 orthogonal views of slices through the volume (if one is loaded),

menu window:

shows the current menu configuration,

text entry:

this is the shell window or xterm from which display was run and in which all text must be typed, e.g. filenames, numerical parameters, etc.
