Global Decreases in MTR

Method

  1. Took a normal control MTR image and manually lowered the MTR value globally. ie. mincmath -sub -const -1 in.mnc out.mnc
  2. Blurred (20mm) the newly lowered MTR ie. diffuse -kernel 20 ...
  3. Compared the newly lowered, blurred MTR with the group of 65 normal controls
  4. Thresholded using 5% fdr

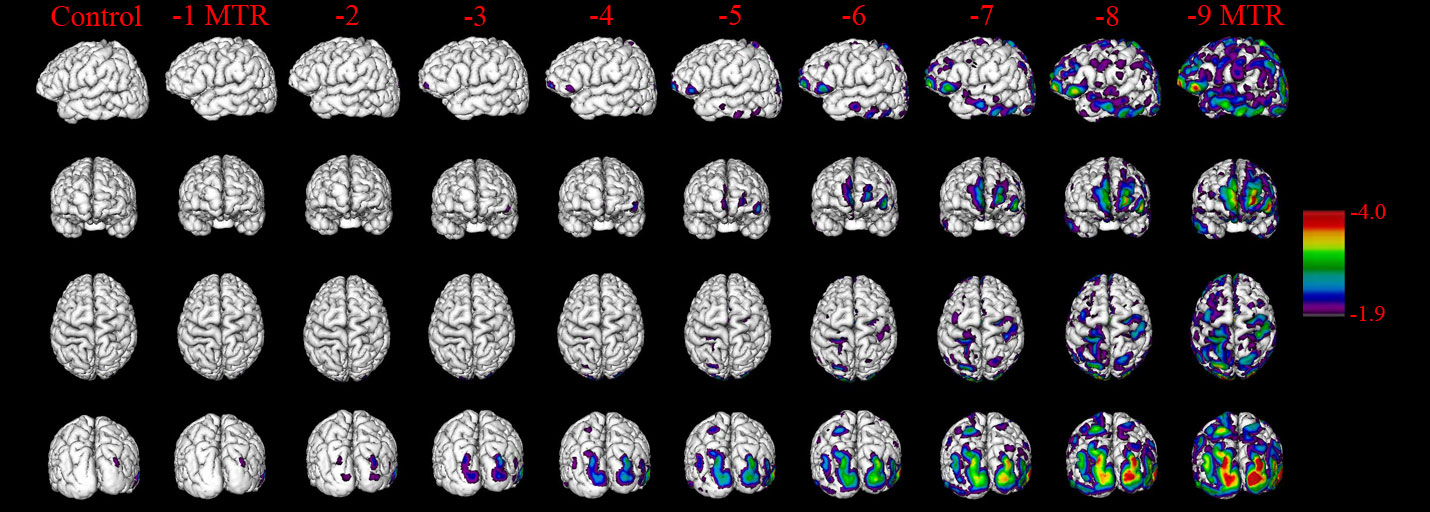

Gray Surface

image was not loaded properly

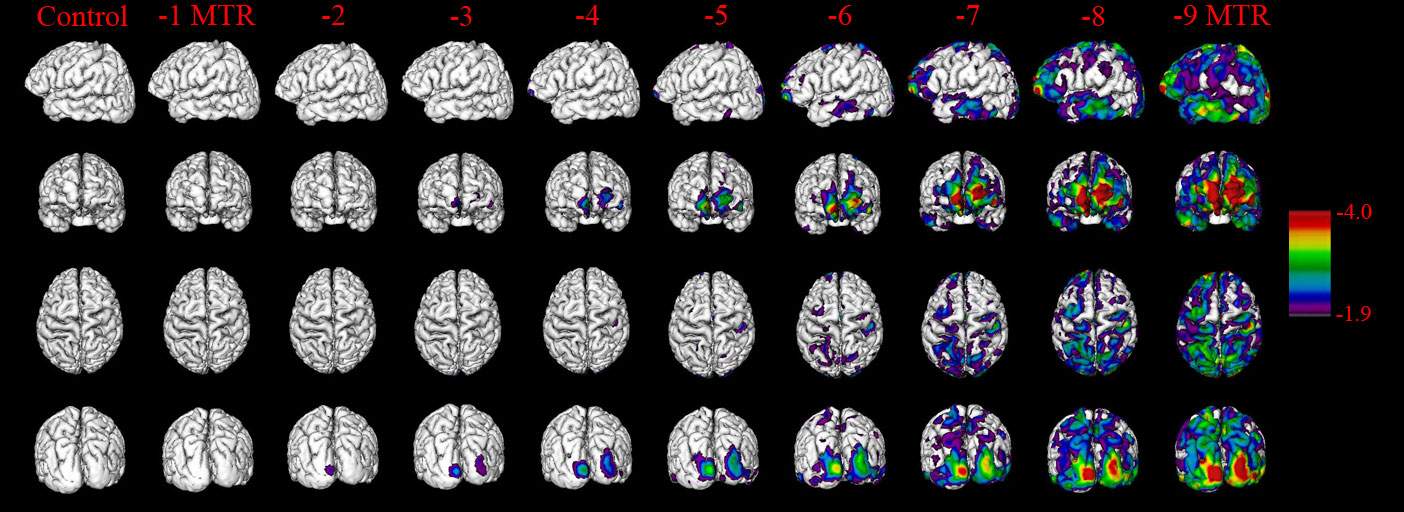

1mm Surface

image was not loaded properly

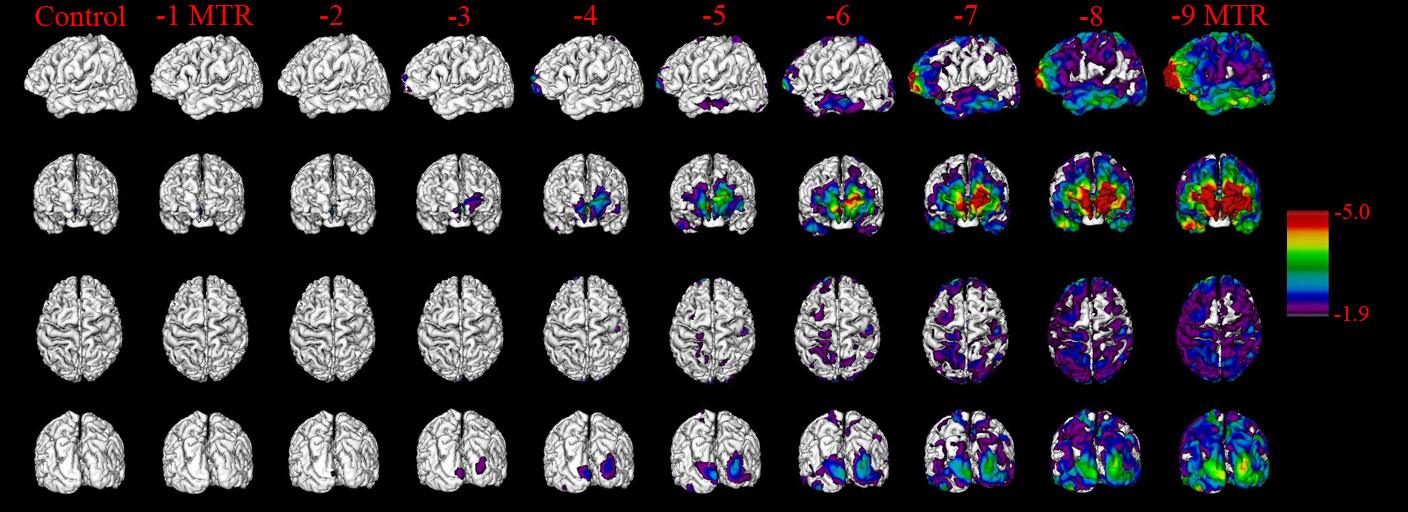

Mid Surface

image was not loaded properly

Focal Decreases in MTR

Method is same as above

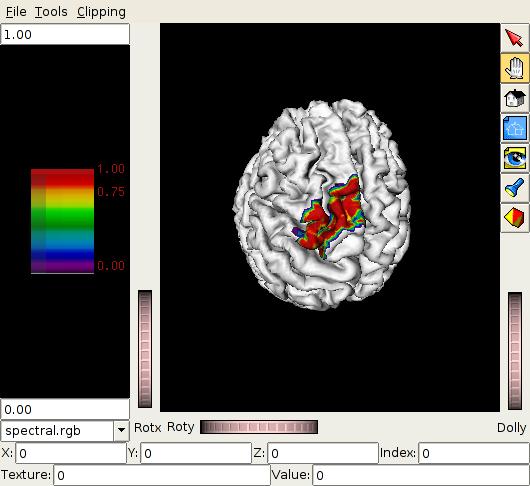

Lesion looks like this:

crap

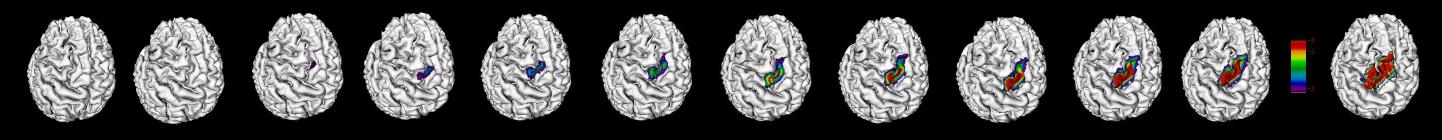

Mid Surface, from -5 to -15

crap
________-5 = 0%_________-6 = 1.2%____________-7 = 6.7%____________-8 = 14.4%__________-9 = 29.0%__________-10 = 38.8%__________-11 = 48.6%_________-12 = 57.5%_________-13 = 64.9%_________-14 = 70.4%_________-15 = 74.1%

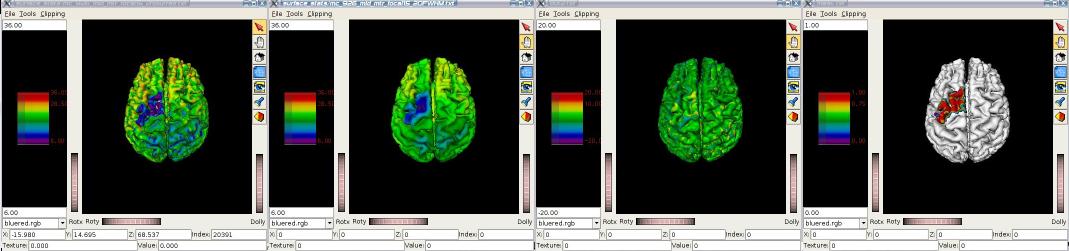

Method

  1. Blur the Raw MTR data on the mid surface with a 20mm kernel
  2. Subtract the raw image from the blurred image
image was not loaded properly
