Transcranial Magnetic Stimulator
The 3-Dimensional Mapping of the Magnetic Field

By:  Lisa Lim
Supervised by:  Dr. Tomas Paus - Neuropsychology, McGill University




    The following images depict the magnetic field distribution of the circular TMS coil at 9,10mm at 100%,80%,60% power of the Cadwell Stimulator.

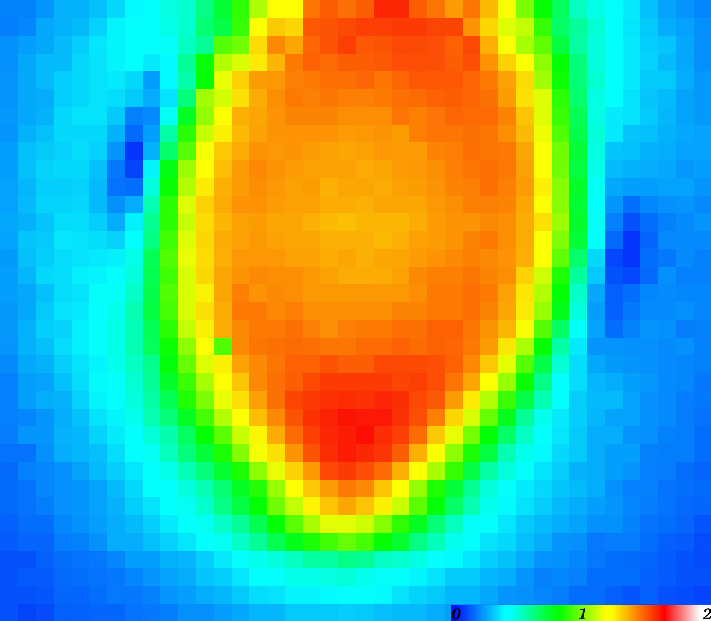

Coil Configuration: Circular
Distance: 9mm
Power: 100%

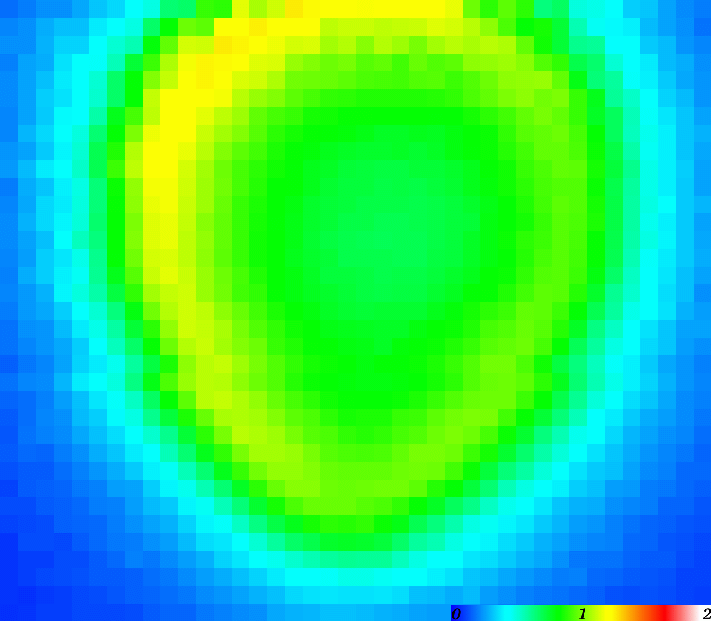

Coil Configuration: Circular
Distance: 9mm
Power: 80%

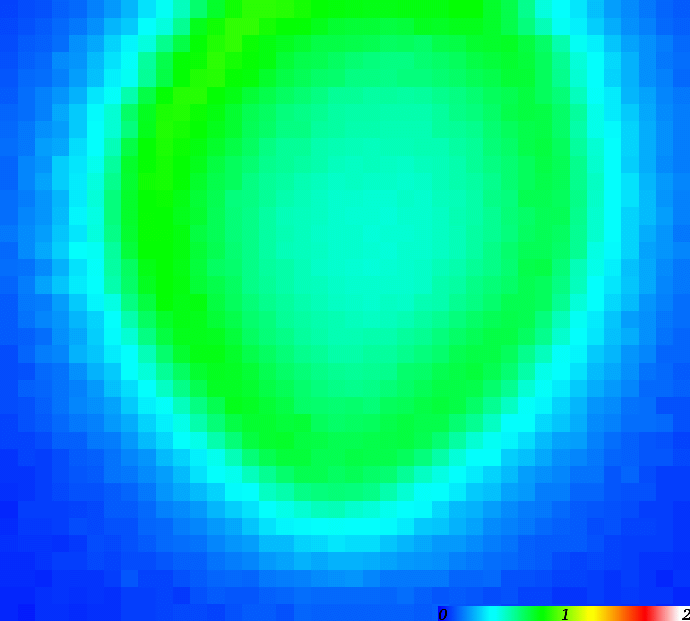

Coil Configuration: Circular
Distance: 9mm
Power: 60%

(Click Image to view larger version.)

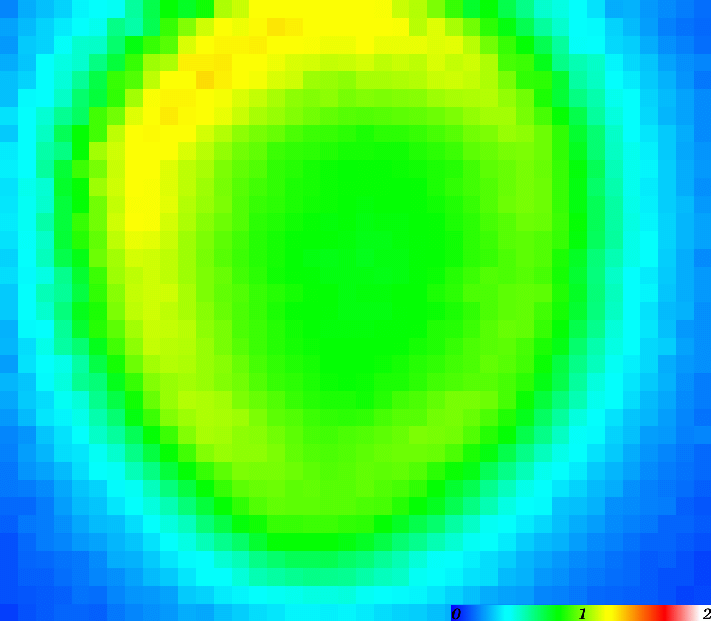

Coil Configuration: Circular
Distance: 10mm
Power: 100%

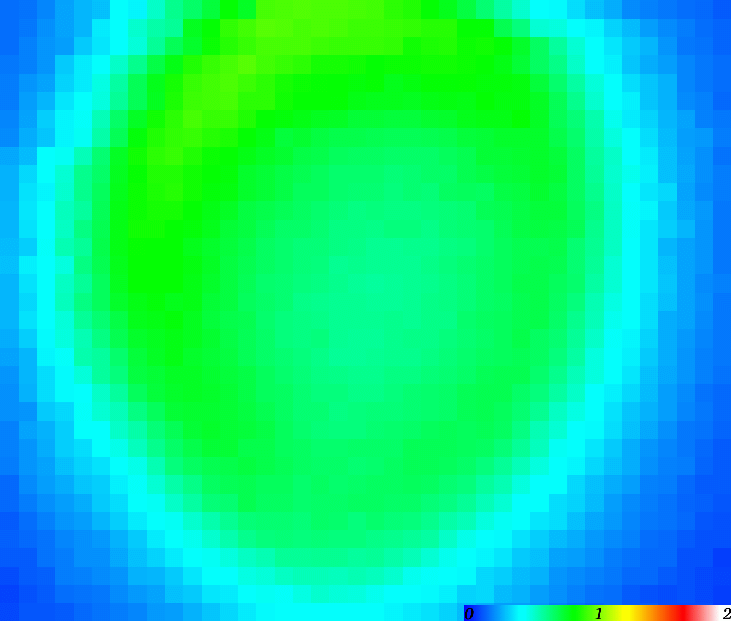

Coil Configuration: Circular
Distance: 10mm
Power: 80%

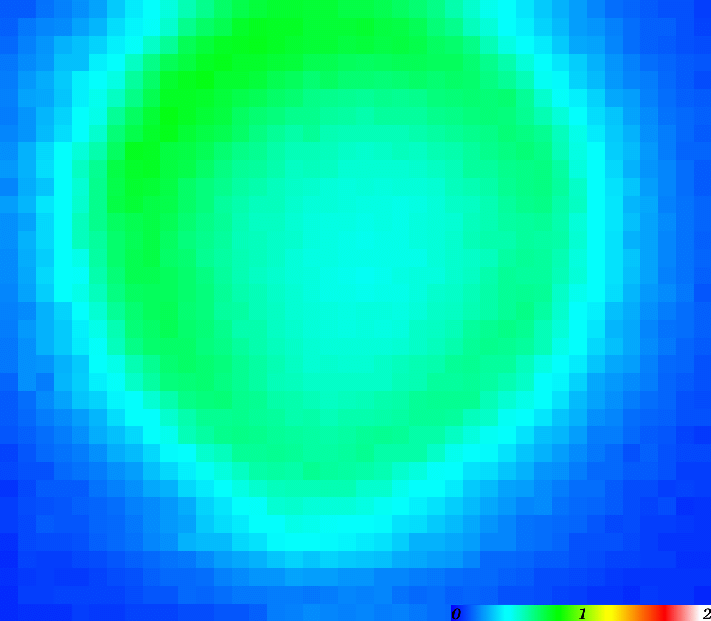

Coil Configuration: Circular
Distance: 9mm
Power: 60%

(Click Image to view larger version.)
