Transcranial Magnetic Stimulator
The 3-Dimensional Mapping of the Magnetic Field
By:  Lisa Lim
Supervised by:  Dr. Tomas Paus - Neuropsychology, McGill University



    The following images depict the magnetic field distribution of the figure-8 TMS coil at 9,10,10.5 mm at 100%,80%,60% power of the Cadwell Stimulator.

Click here to download a sample of the sound of the coil when it is triggered. (The sound was measured at a distance of 5cm away from the coil, at 100% power.)

Click here to see the colormaps.

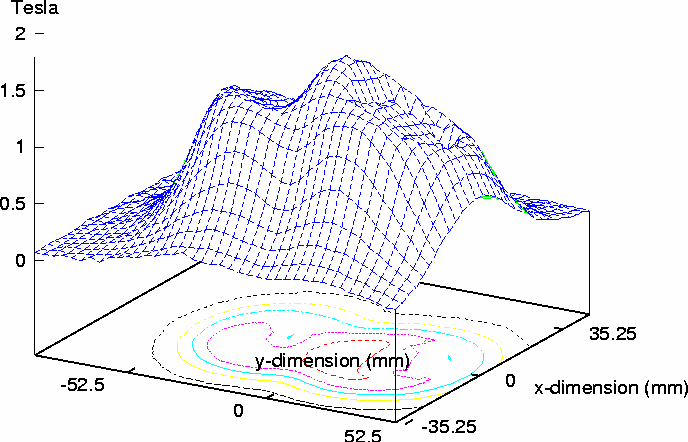

Coil Configuration: Figure-8
Distance: 9mm
Power: 100%

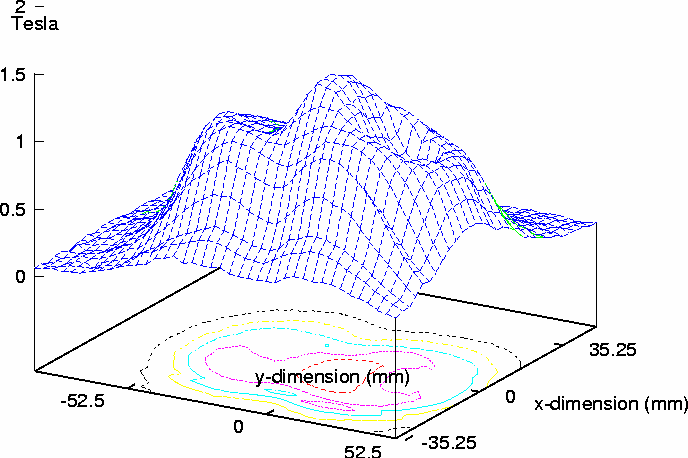

Coil Configuration: Figure-8
Distance: 9mm
Power: 80%

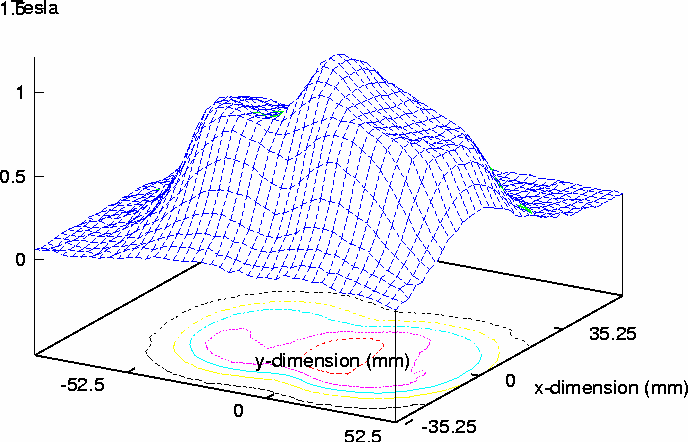

Coil Configuration: Figure-8
Distance: 9mm
Power: 60%
(Click Image to view larger version.)

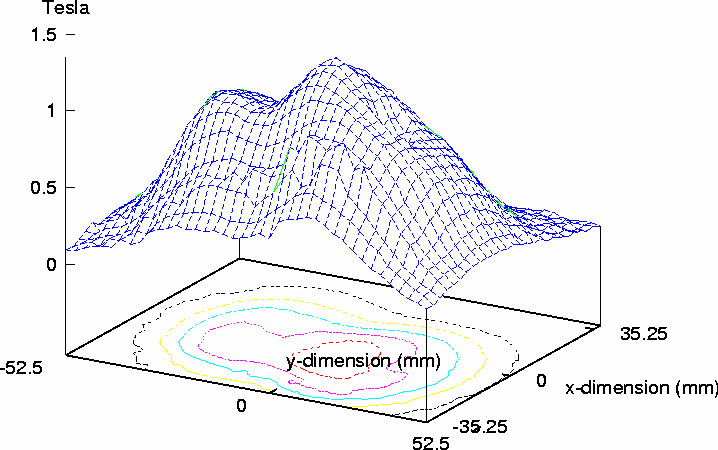

Coil Configuration: Figure-8
Distance: 10mm
Power: 100%

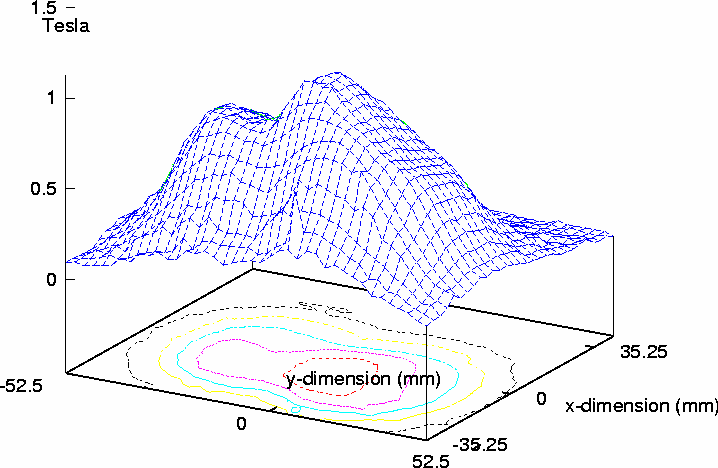

Coil Configuration: Figure-8
Distance: 10mm
Power: 80%

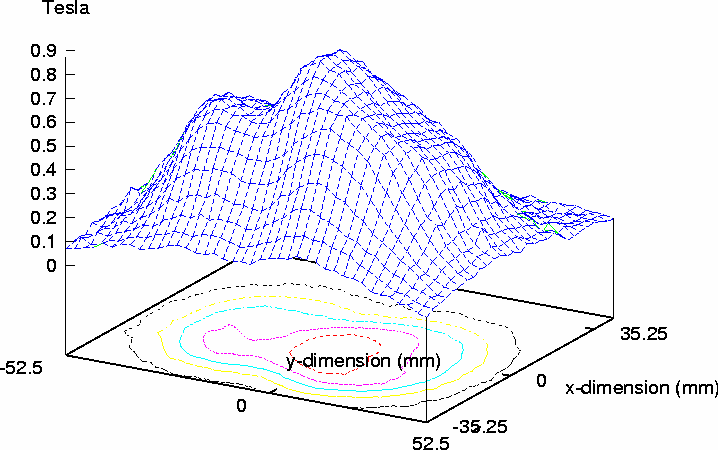

Coil Configuration: Figure-8
Distance: 10mm
Power: 60%
(Click Image to view larger version.)





Coil Configuration: Figure-8
Distance: 10.5mm
Power: 100%

Coil Configuration: Figure-8
Distance: 10.5mm
Power: 80%

Coil Configuration: Figure-8
Distance: 10.5mm
Power: 60%
(Click Image to view larger version.)
