Transcranial Magnetic Stimulator  The 3-Dimensional Mapping of the Magnetic Field

By:  Lisa Lim Supervised by:  Dr. Tomas Paus - Neuropsychology, McGill University

---



The following images depict the magnetic field distribution of the circular TMS coil at 9,10mm at 100%,80%,60% power of the Cadwell Stimulator.   Click here to download a sample of the sound of the coil when it is triggered. (The sound was measured at a distance of 5cm away from the coil, at 100% power.) Click here to see the colormaps.

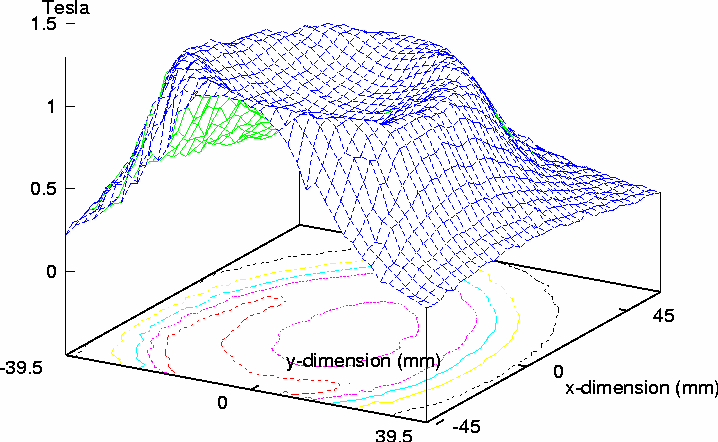

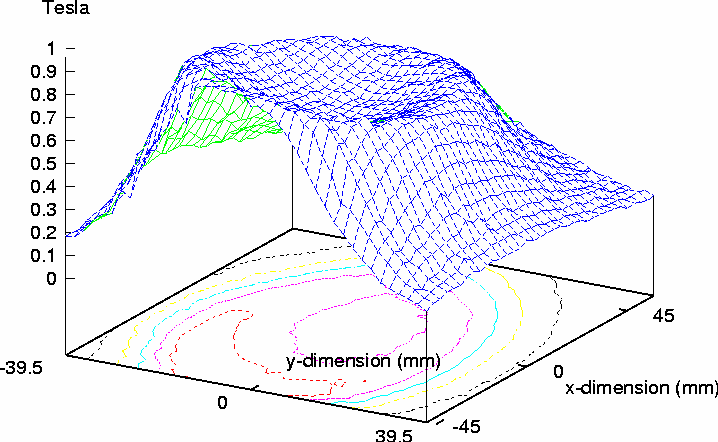

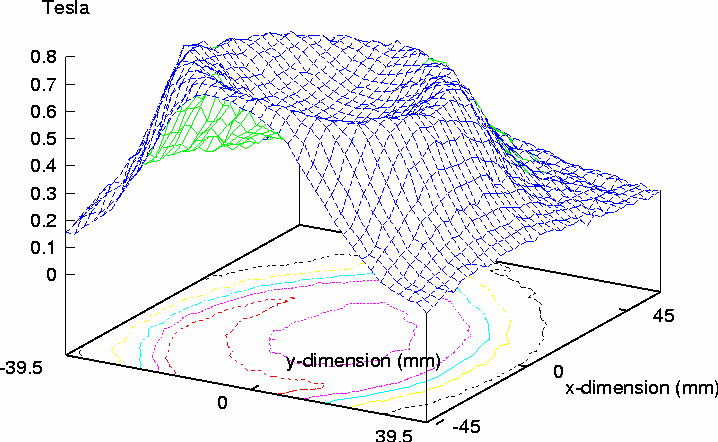

Coil Configuration: Circular  Distance: 9mm  Power: 100%	Coil Configuration: Circular  Distance: 9mm  Power: 80%	Coil Configuration: Circular  Distance: 9mm  Power: 60%
	(Click Image to view larger version.)

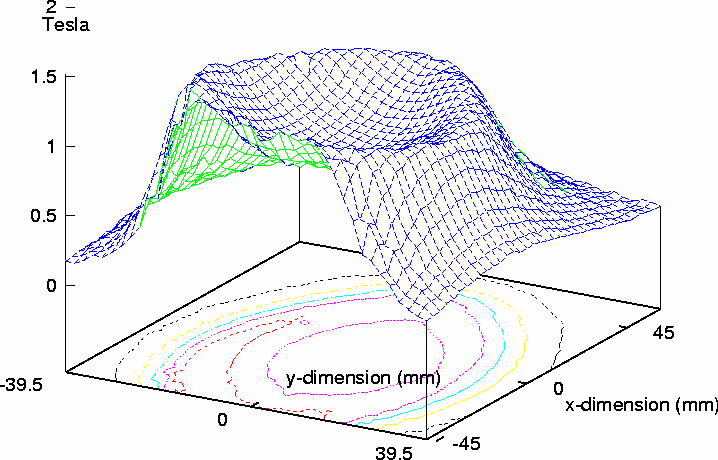

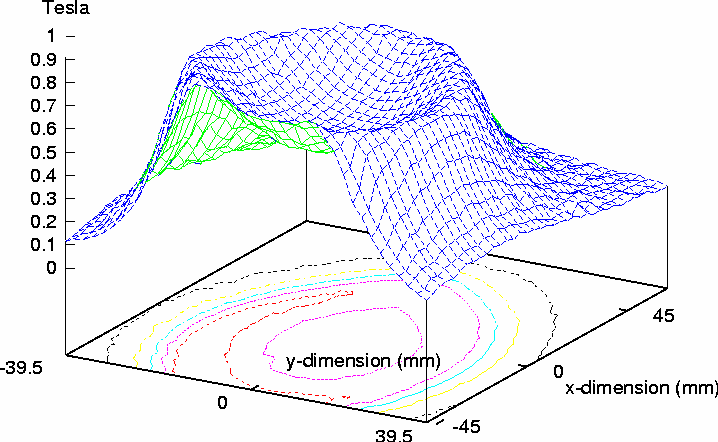

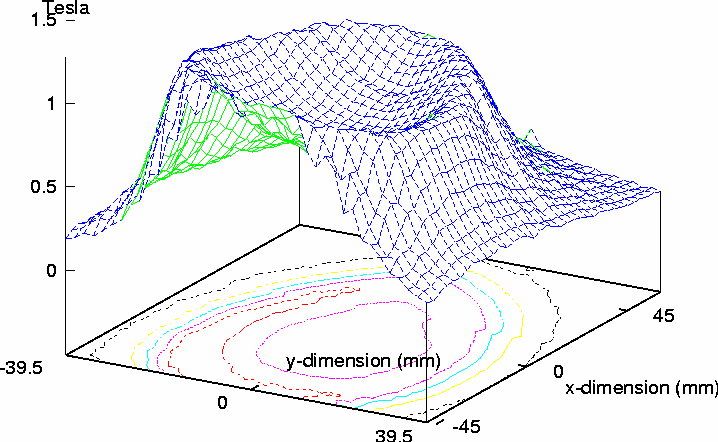

Coil Configuration: Circular  Distance: 10mm  Power: 100%	Coil Configuration: Circular  Distance: 10mm  Power: 80%	Coil Configuration: Circular  Distance: 9mm  Power: 60%
	(Click Image to view larger version.)



---
